This is the integrated path teams run in production. Cockpit populates every dashboard from the same Jira load; ScenarioForge never bypasses human review before publish.
PHASE A · JIRA & COCKPIT SETUP

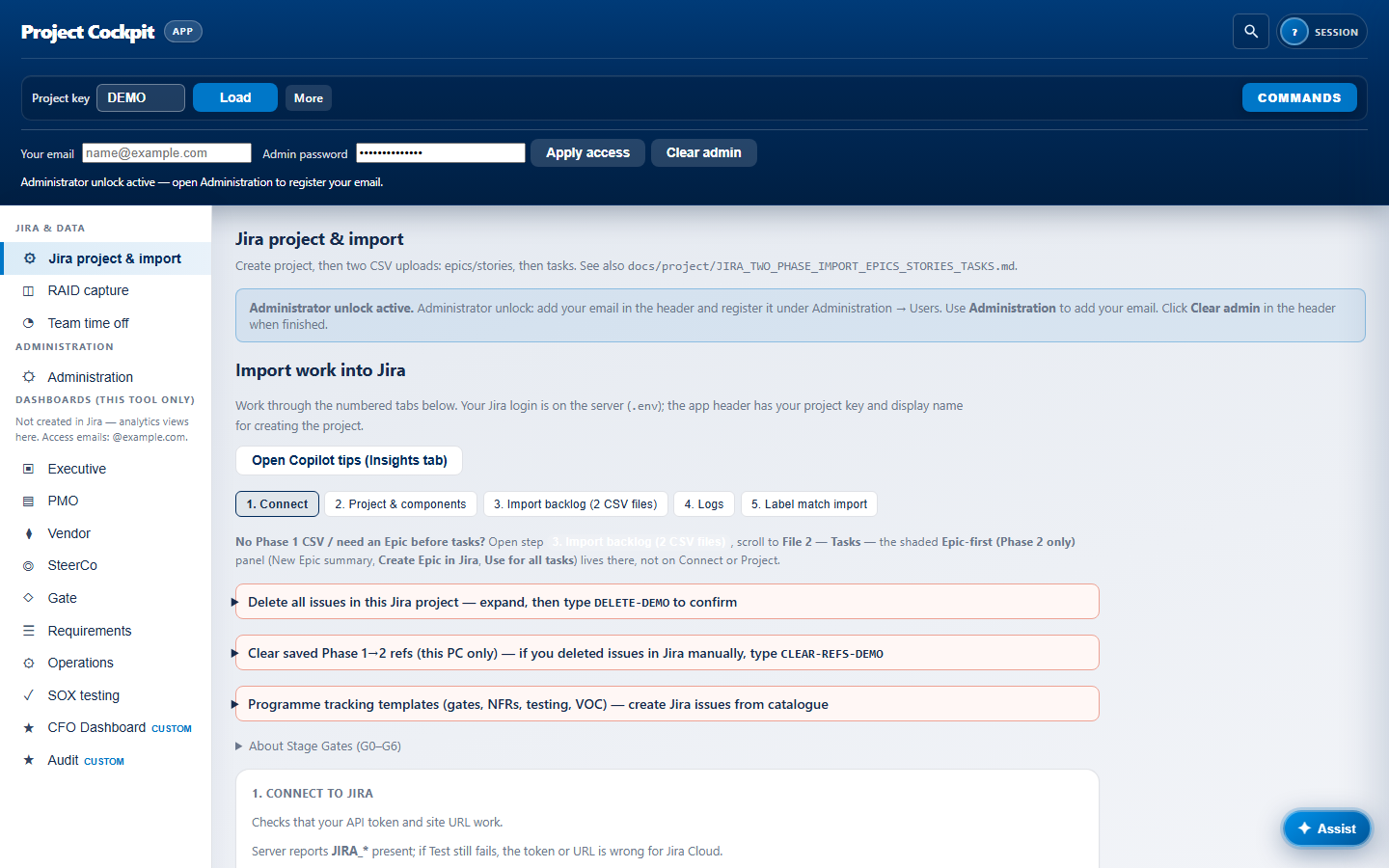

1 — Create the Jira project
In Jira project & import → Connect, verify credentials, then create the project (or bind an existing key). Set components and programme metadata. Cockpit stores nothing outside your Jira site except local refs and tenant config.
PHASE A · JIRA & COCKPIT SETUP
2 — Import Phase 1 backlog (epics & stories)
Upload the epics/stories CSV. Cockpit maps hierarchy (Epic → Story), Epic Link, and optional stage-gate labels. Import logs show every row — fix Jira screen/field errors before Phase 2.
PHASE A · JIRA & COCKPIT SETUP
3 — Import Phase 2 tasks (incl. test-scenario tasks)
Upload the tasks CSV. Parent resolution links work to stories or epics. Tag Phase 2 rows that should feed ScenarioForge — these become the generation source later.
PHASE A · JIRA & COCKPIT SETUP
4 — Stage Gate field & programme templates
Create the Stage Gate (Project Cockpit) custom field (G0–G6) or use gate labels. Optionally apply programme template packs (gate evidence, NFRs, testing governance).
PHASE B · DASHBOARDS LIVE
5 — Load issues → all dashboards populate
Enter the project key and click Load. One Jira index feeds every view:

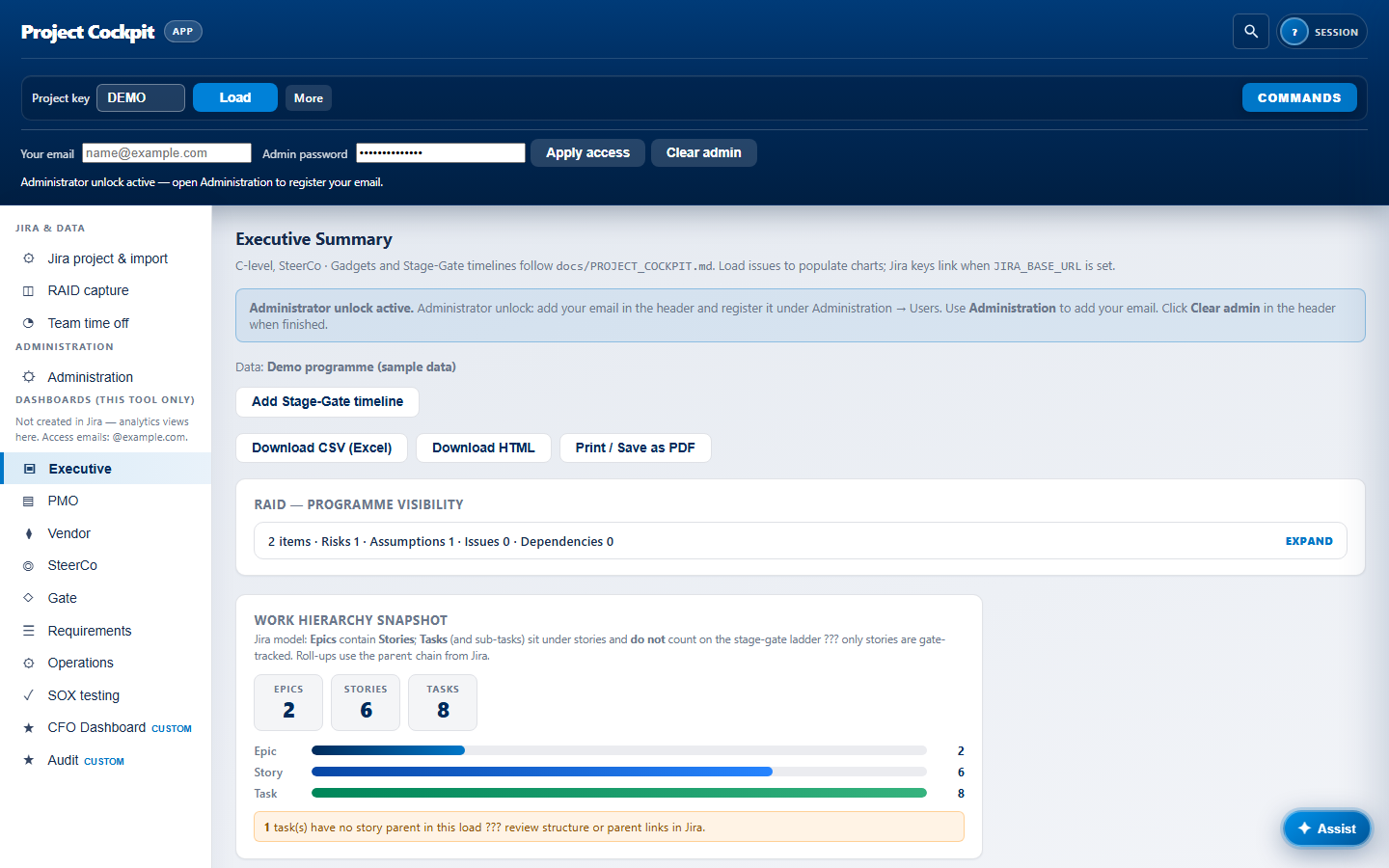

- Executive — RAID, hierarchy, epic tree, blocked/critical tables

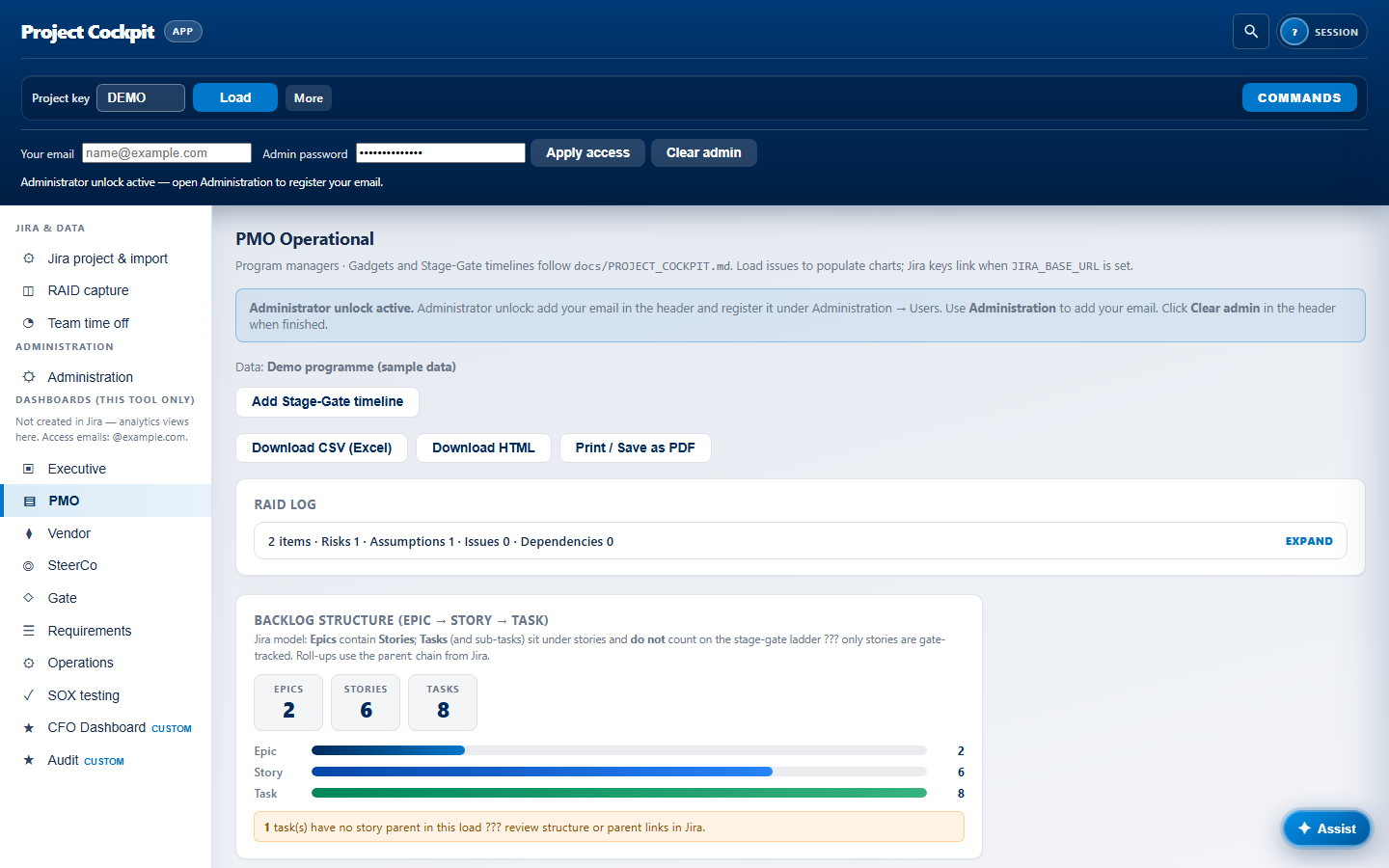

- PMO — operational control, stagnant items, assignee load
- SteerCo — sponsor lists, export bundle (ZIP)

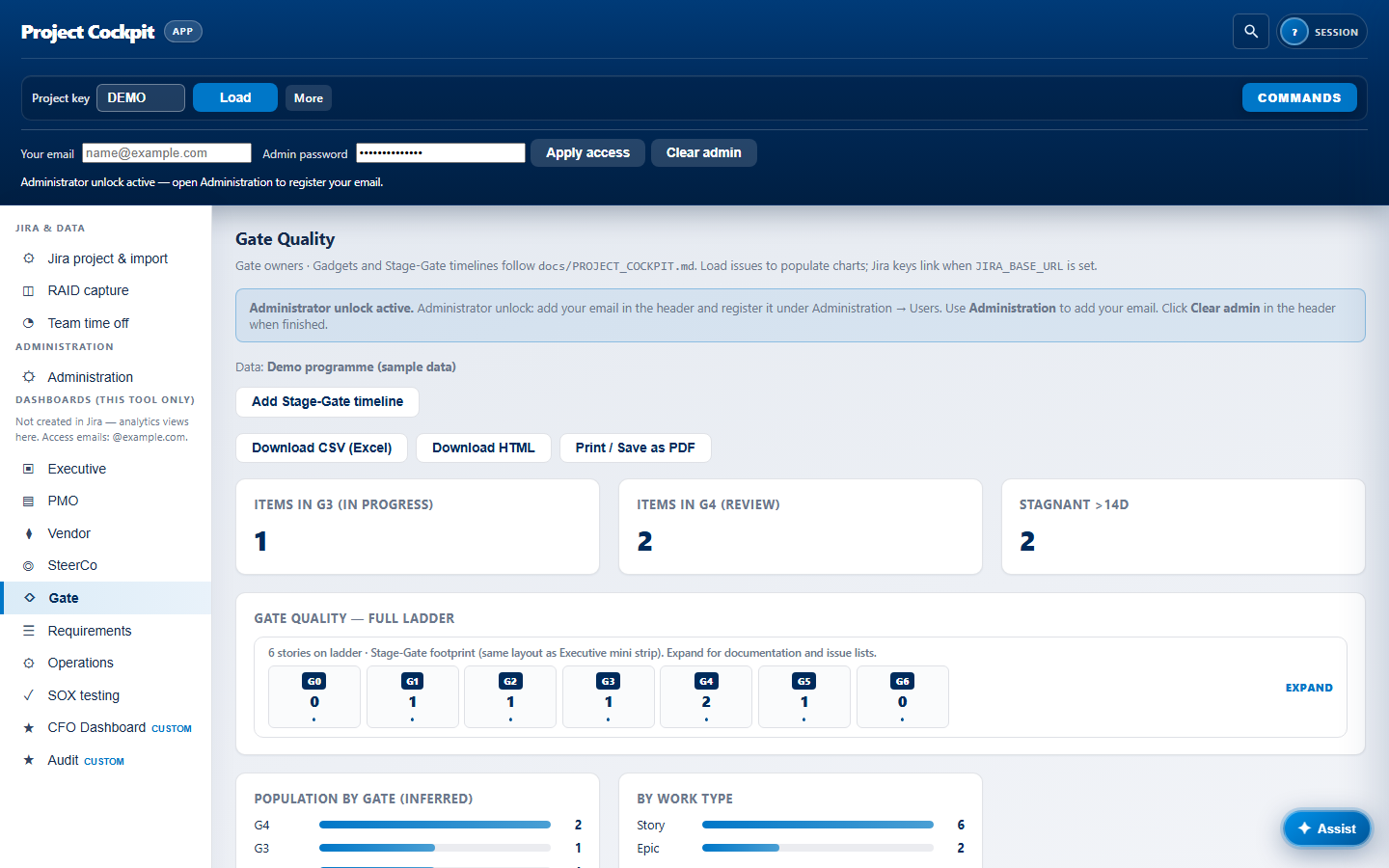

- Gate Quality — full G0–G6 ladder, review queue, KPI cards

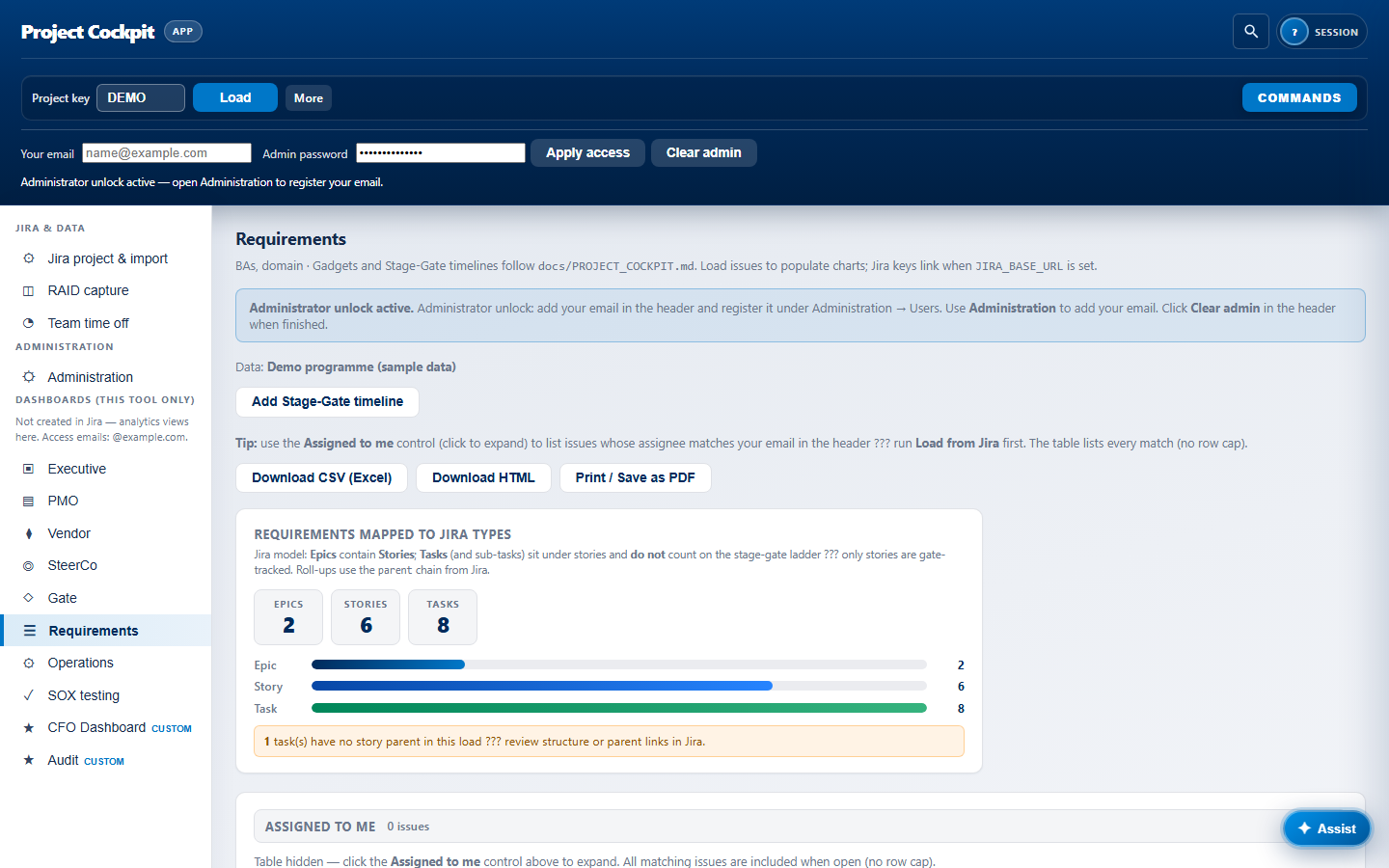

- Requirements — traceability matrix and gap lists

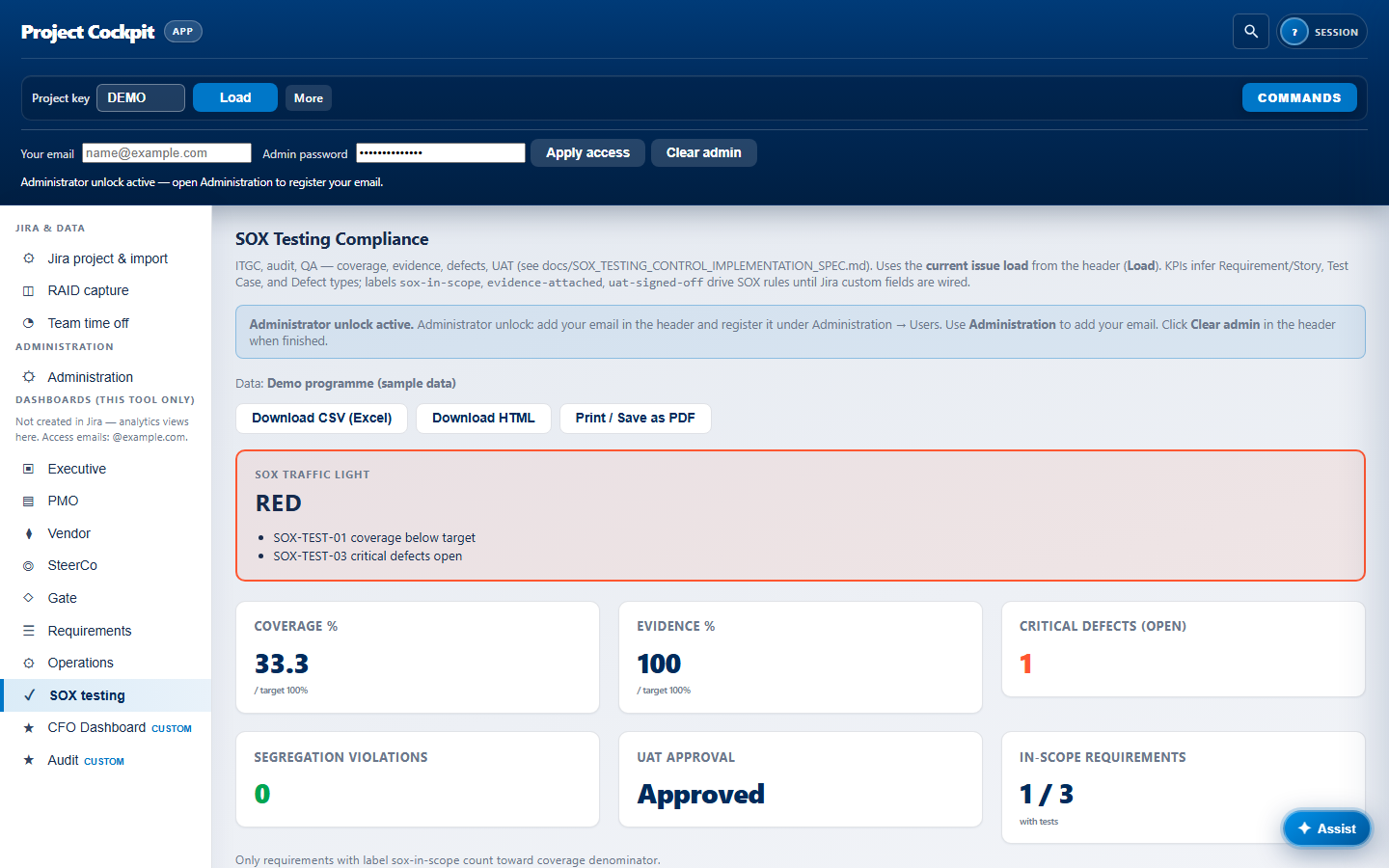

- SOX testing — coverage, evidence, defects, UAT posture
PHASE B · DASHBOARDS LIVE
6 — RAID, time-off, and ongoing governance
Capture risks/assumptions/issues/dependencies into Jira from RAID capture. Record team leave so stale lists soften while people are out. PMO and SteerCo export CSV/HTML/PDF on demand.
PHASE C · SCENARIOFORGE INTEGRATION
7 — Connect ScenarioForge to the cockpit
Your operator enables the integration bridge so ScenarioForge reads cockpit work items and shares the same Jira connection. Setup is part of your deployment package — not something evaluators run from this site.
PHASE C · SCENARIOFORGE INTEGRATION
8 — Pre-flight traceability

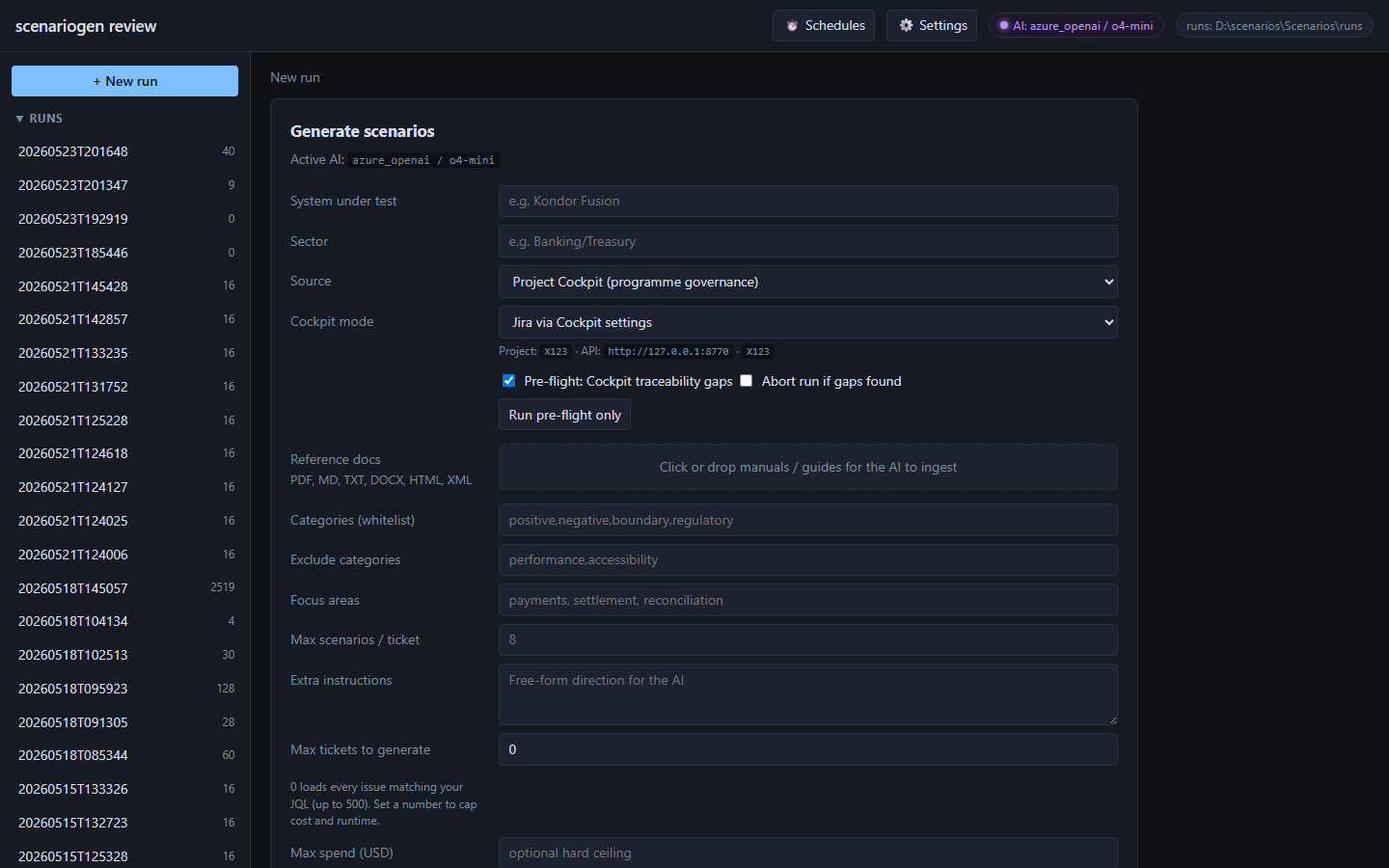

In ScenarioForge + New run → Project Cockpit, run pre-flight against the Requirements lens. Abort on gaps or continue with warnings — same rules the cockpit dashboard uses.
PHASE C · SCENARIOFORGE INTEGRATION
9 — Generate scenarios & test cases
BYOK LLM drafts scenarios from Phase 2 test tasks (or cockpit API / RTM CSV). Categories, focus areas, and spend caps steer output. Nothing is written to production Jira yet.
PHASE D · REVIEW & PUBLISH
10 — Human review in the review console
QA approves, edits, or rejects each scenario. Coverage map and source ticket stay visible. Every decision is recorded in the audit log.
PHASE D · REVIEW & PUBLISH
11 — Push to Jira & Confluence
Publish approved test cases via hierarchy (Epic → Story → Sub-task), Xray, or comment mode. Optional cockpit PATCH enriches fields. Publish RTM pages to Confluence when configured.
PHASE E · AUTOMATION
12 — Close the loop
Inbound Jira webhooks and scheduled runs draft new scenarios when tickets move — still human-approved before publish. Cockpit dashboards reflect the updated Jira index on the next Load.
